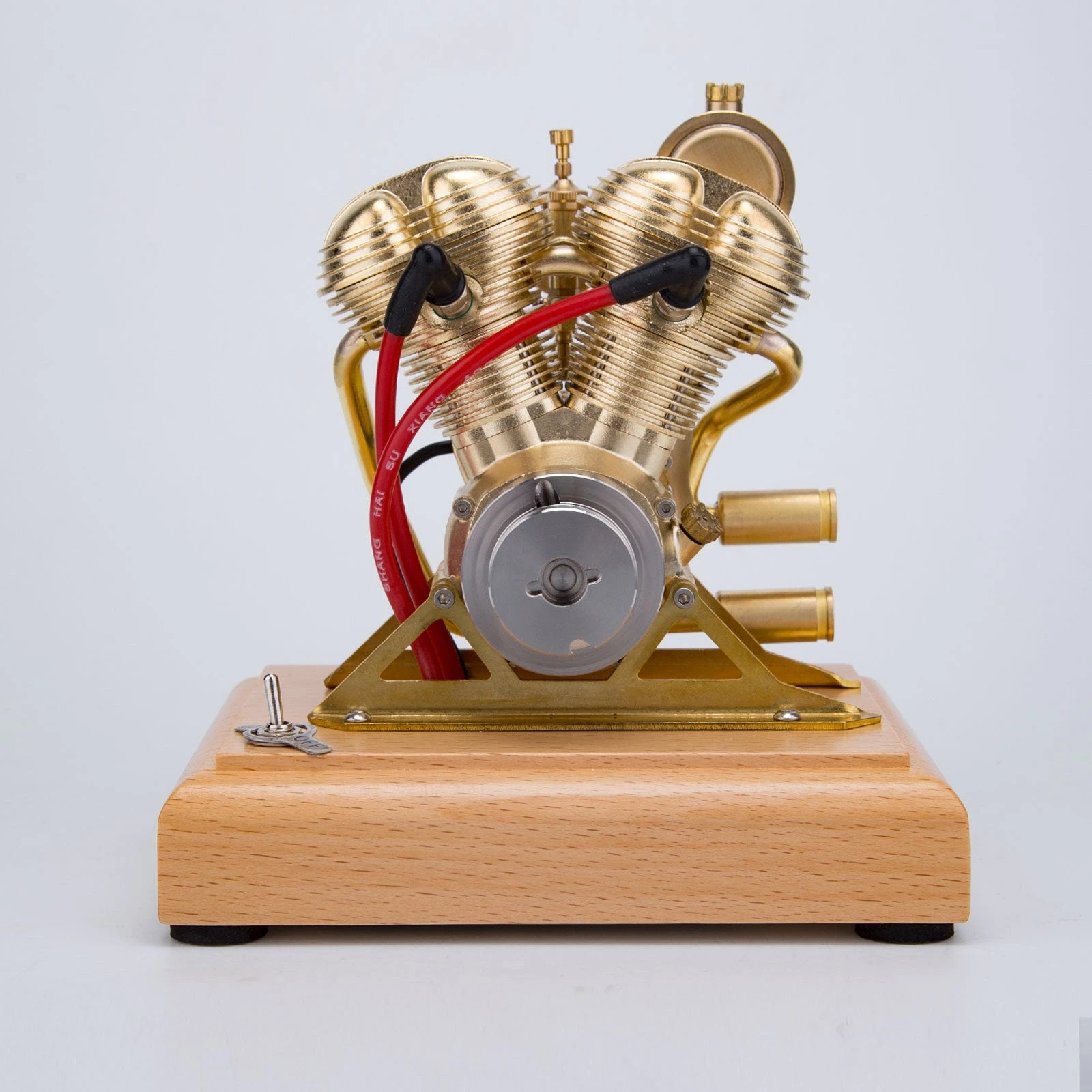

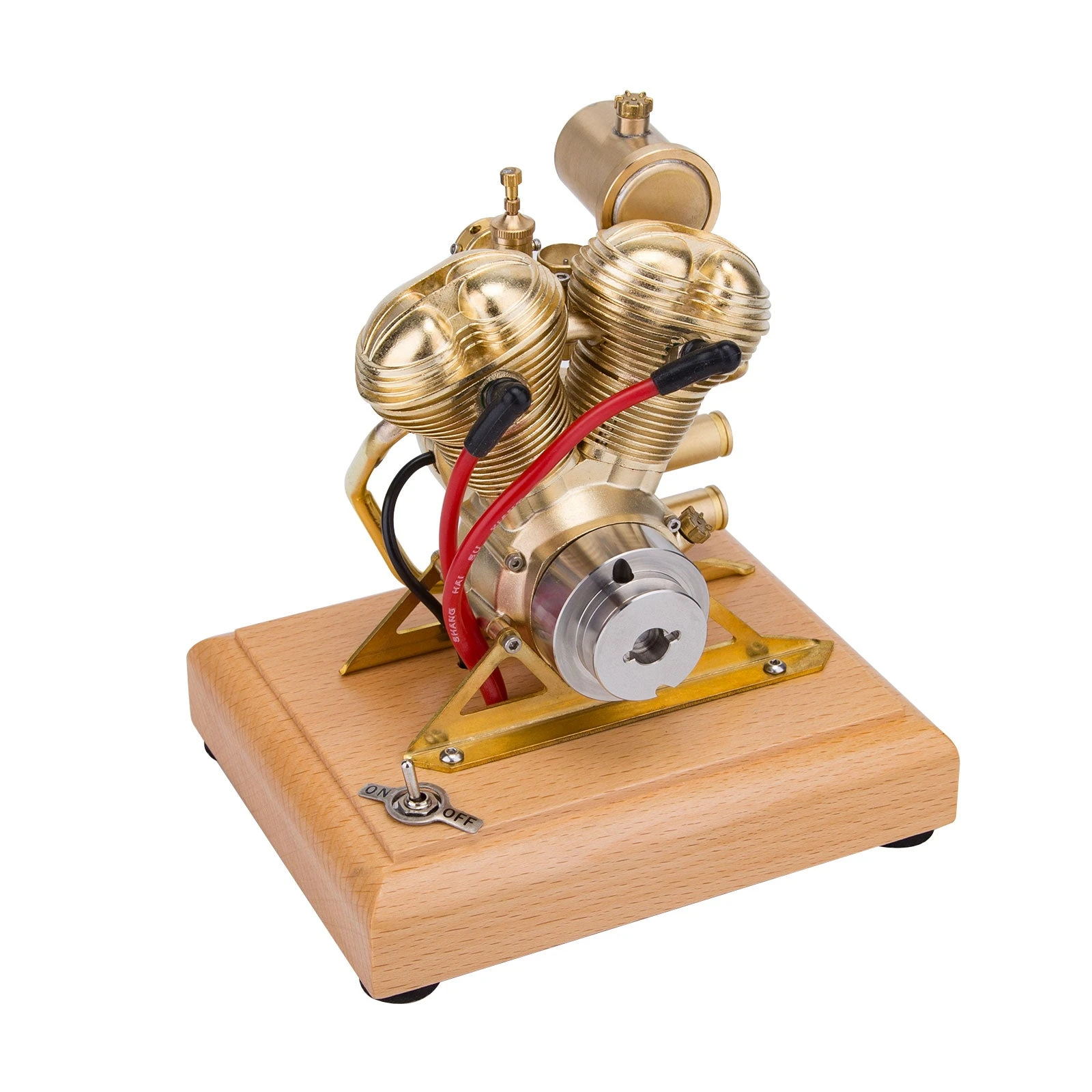

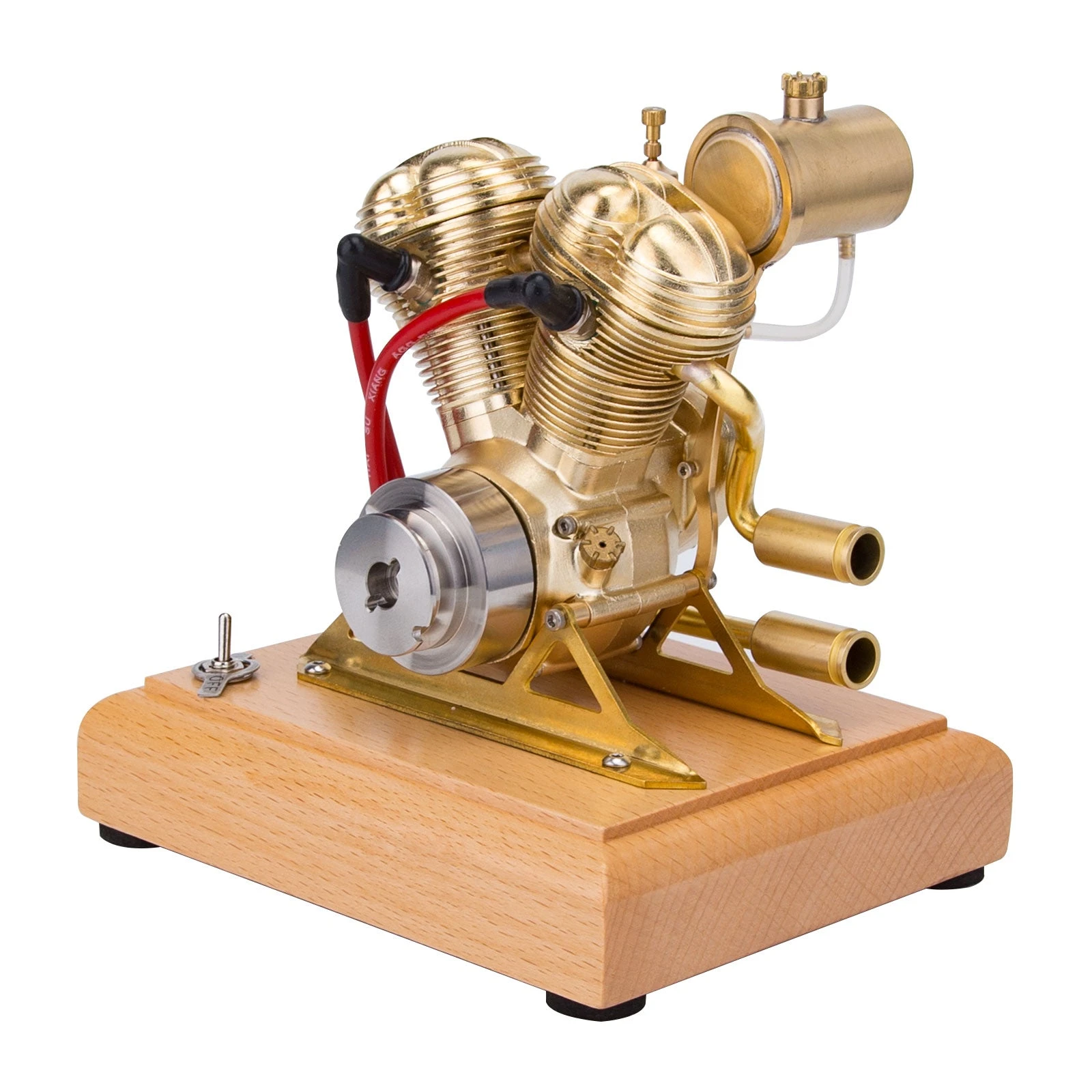

R28 4.3CC Mini OHV V-Twin V2 Engine Double-cylinder Four-stroke Motorcycle Gasoline IC Engine Model

R28 4.3CC Mini OHV V-Twin V2 Engine Double-cylinder Four-stroke Motorcycle Gasoline IC Engine Model

R28 V2 Engine:
Based on the V-twin double-cylinder motorcycle engine in the 1970s, the miniature gasoline engine model embodies the spirit of different ages in a wonderful way.

Retro Design:

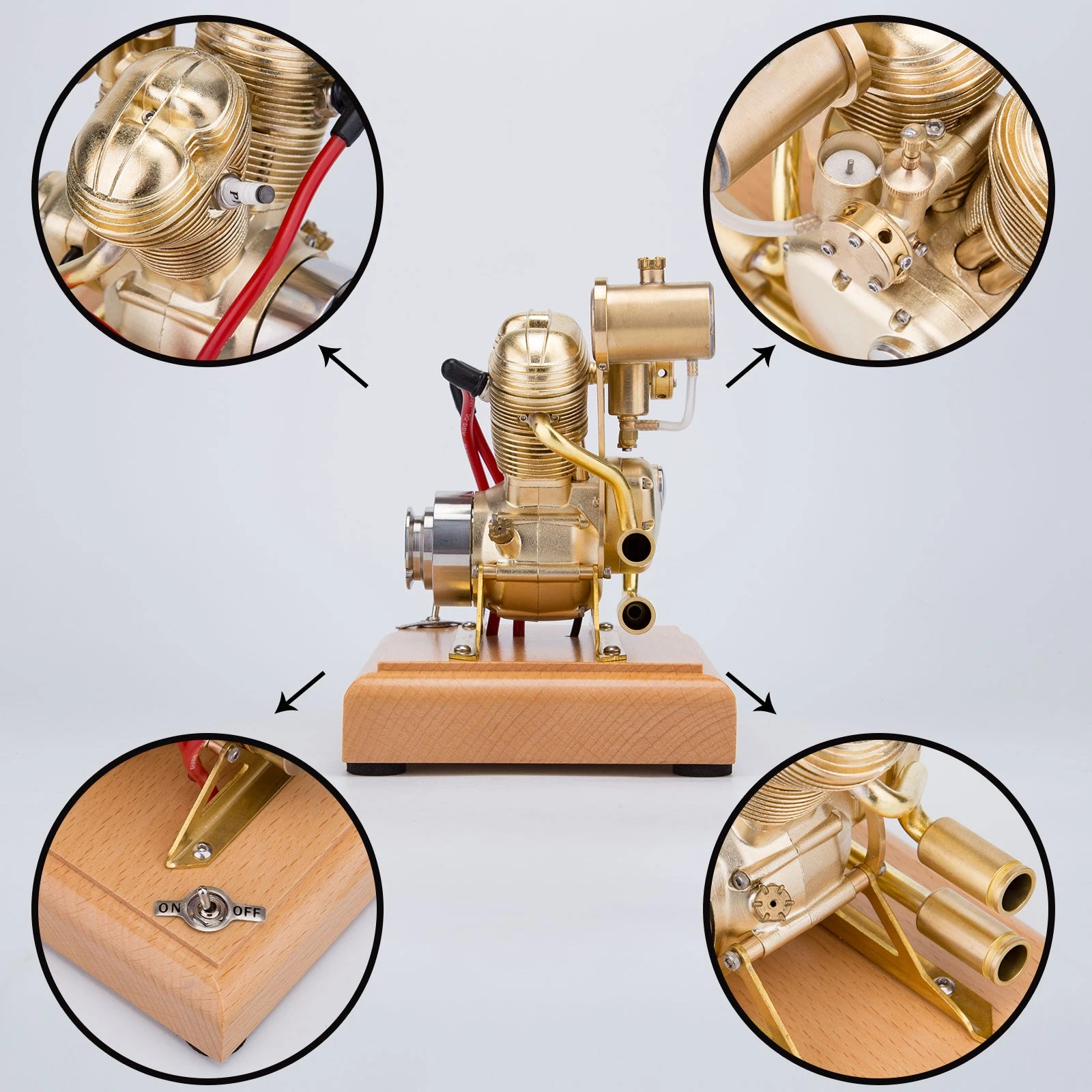

.Designed with classic body lines and cold-cooling structure, the retro machine restores a host of authentic engine details, including a new carburetor, lift throttle and floater-controlled valve with gasoline.

Brass and Metal Made:
Each part of the engine was carefully designed, processed as well as made of brass and stainless steel, working in conjunction with a wooden base for easy display&control and stable operation.

RTR Version:
Built with start and ignition equipment, the engine is ready to run and friendly to novice model enthusiasts. When running, you will satisfy and marvel at its operation.

Collection or Gift Choice:
As a coveted collection, the engine model is worth showing and playing, suitable for personal use and a high-end gift to friends and families at major festivals.

Age Recommendation: 14-year-old +

Warm Tips:
1. If the engine is failure to start normally under the normal ignition and cylinder compression, it is likely that the carburetor needle will need to be adjusted.
2. After tightening the main oil needle on the carburetor, loosen 1/4 turn and start the flywheel to make the mixture ratio of gasoline and air reach the normal working mixture ratio after several times.
3. Turn off the power switch when the machine stops.

Know More:
.Material: Brass + Stainless Steel
.Item No: R28
.Color: Brazen
.Form: Ready to Run
.Type: Double-Cylinder Four-Stroke Gasoline Engine
.Displacement: 4.3CC
.Cylinder Diameter: 13mm
.Stroke: 16mm
.Cooling Mode: Cold Cooling

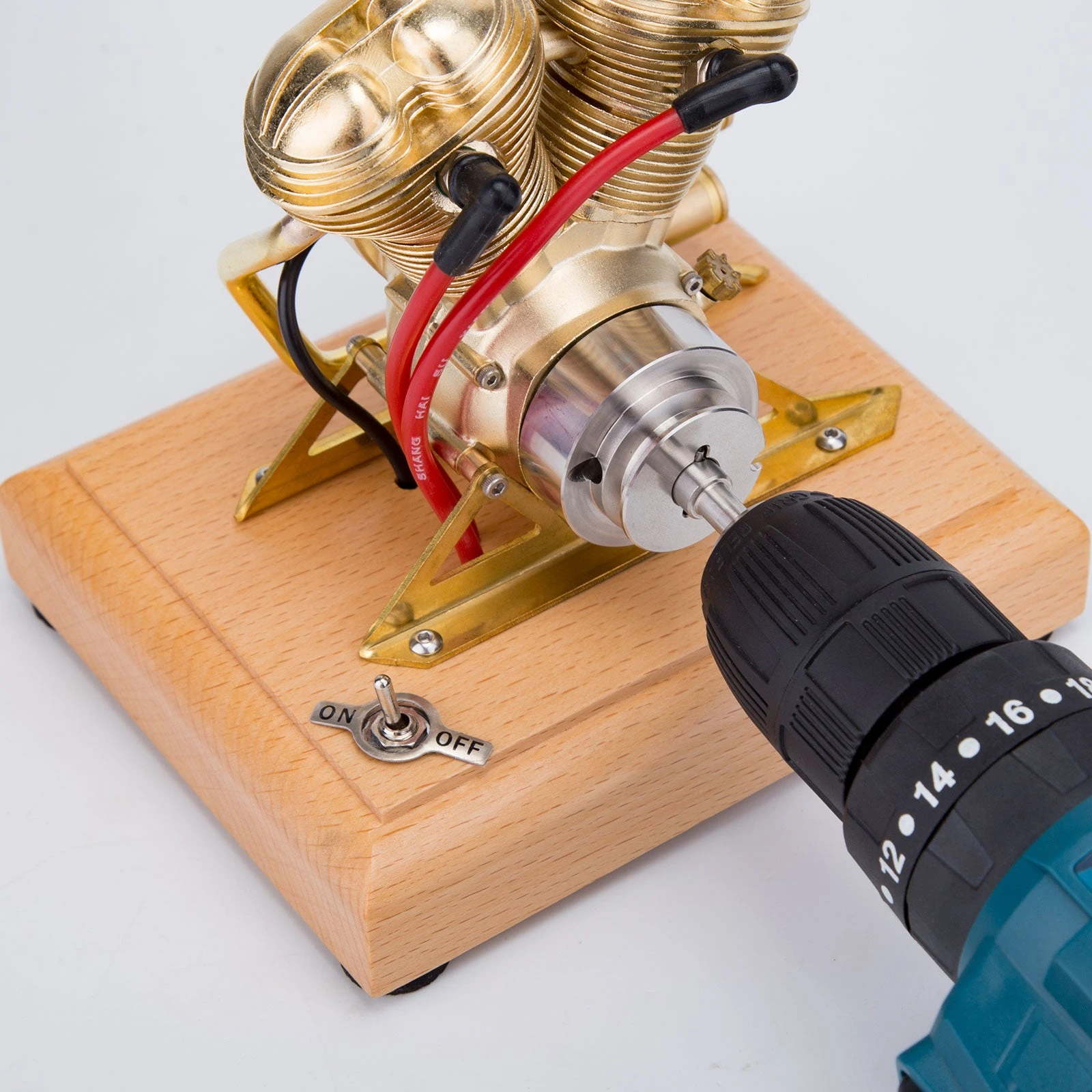

.Starting Mode: Manual/Electronic Drill Starting
.Ignition Method: Electronic Igniter
.Spark Plug Type: 1/4-32 Thread ME8 Spark Plug
.Lubrication Method: Mix/Splash Lubrication (Gasoline/Engine Oil =25/1)
.Fuel Type: 95# Gasoline
.Engine Oil Type: 2T Engine Oil

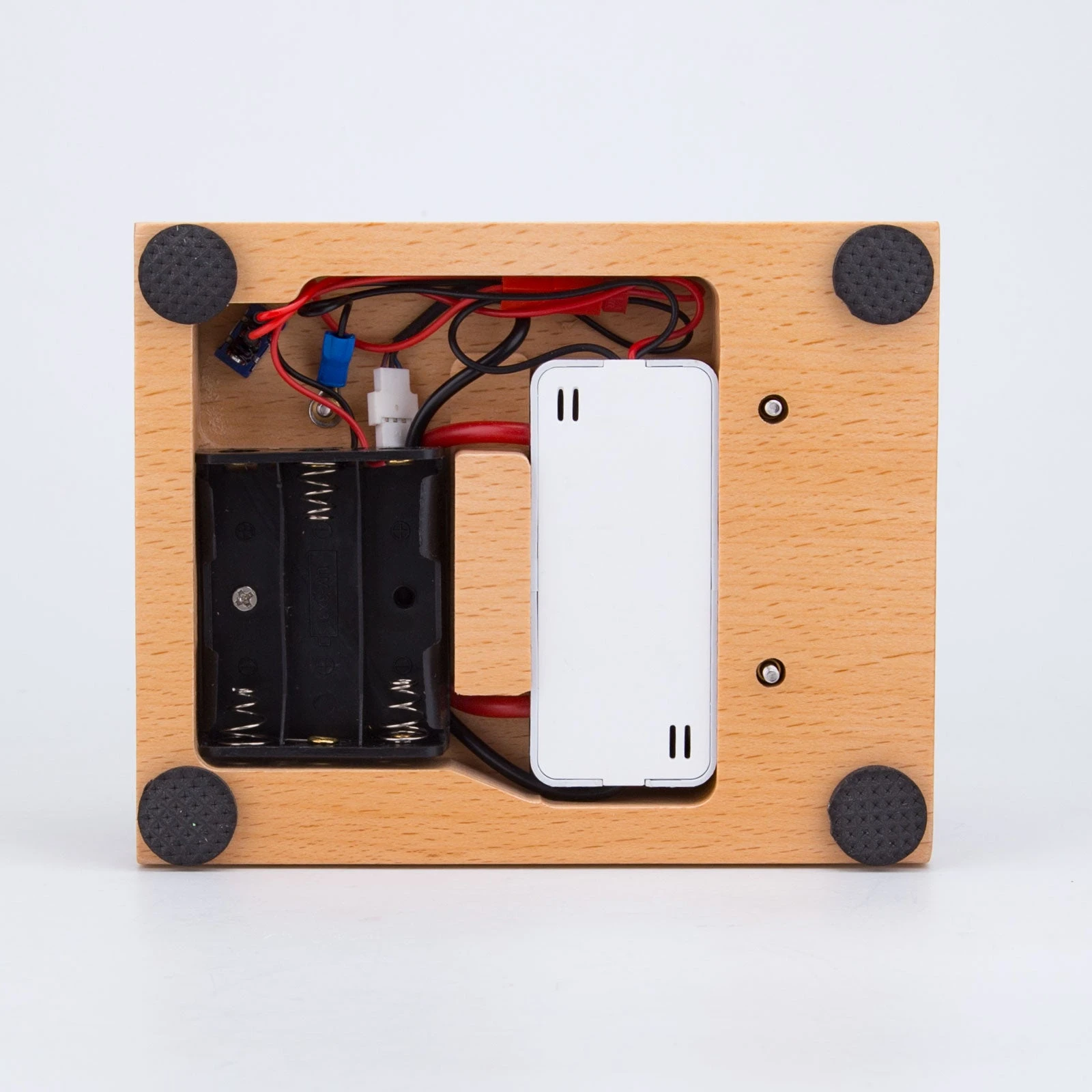

.Starting Power: 4.5V AA Batteries (Not Included)
.Engine Dimensions: 110*100*130mm
.Wooden Base Dimensions: 150*120*30mm
.Product Dimensions: 11 x 10 x 13cm
.Product Weight: 1530g
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 1650g
.Packing: Carton Box

Package List:
1 x V2 Engine Model
1 x Electric Drill Coupling (Start-up Rod)
1 x Manual Pull Rope
1 x Spare O Ring Set
1 x Instructions
